Quiz 3 (cont) Quiz ID code: rip-2520866823

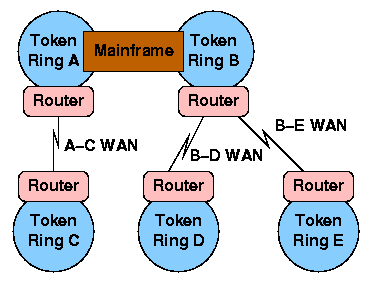

The address prefix 207.77.176/24 has been assigned to the diagrammed network. Assign address prefixes to each of the subnets.

Assume that the RIP routing protocol is used throughout.

207.77.176/24

Number of HostsAddress Prefix
Token Ring A12
Token Ring B9
Token Ring C6
Token Ring D12
Token Ring E7
A-C WAN2
B-D WAN2
B-E WAN2
