IPSEC also has the disadvantage of requiring operating system support, since most O/S kernels don't allow direct manipulation of IP headers. This presents legal issues, since cryptographic software is restricted by many governments. Linux IPSEC support (the FreeS/WAN project), for example, isn't included in the standard kernel distribution for this reason, and has to be applied as an add-on. Furthermore, putting the cryptography in the kernel isolates it from the application, making it more difficult to code crypto-aware software. Using SSL, for example, simply requires linking a library into the application and allows the application to easily query what certificates have been used to authenticate a client (for example). Doing the same thing with IPSEC requires the application to query the kernel using some kind of API.
Figure 1. IPsec Document Roadmap
IPSEC defines a "Security Association" (SA) as its primitive means of protecting IP packets. An SA is defined by the packet's destination IP address and a 32-bit Security Parameter Index (SPI), that functions somewhat like a TCP or UDP port number, in that it allows multiple SAs to a single destination address. SAs can operate in transport mode, where the IPSEC data field begins with upper level packet headers (usually TCP, UDP, or ICMP), or in tunnel mode, where the IPSEC data field begins with an entirely new IP packet header, ala RFC 2003. Furthermore, SAs can be encapsulated within SAs, forming SA bundles, allowing layered IPSEC protection.

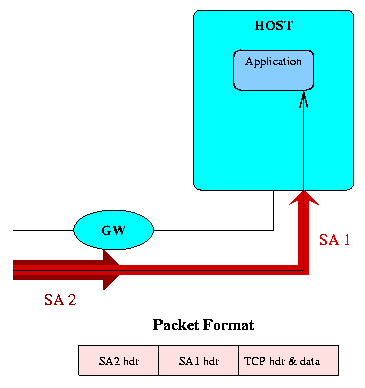

For example, one SA might protect all traffic through a gateway, while another SA would protect all traffic to a particular host. The packets finally routed across the network would be encapsulated in an SA bundle consisting of both SAs. The other side of the connection could be identical in design, consisting of a gateway implementing a tunnel SA, followed by a host implementing a transport SA, or the entire bundle could be terminated in a single host, which would then implement both SAs.
Figure 2: Bundled SAs
A common use of IPSEC is the construction of a Virtual Private Network (VPN), where multiple segments of a private network are linked over a public network using encrypted tunnels. This allows applications on the private network to communicate securely without any local cryptographic support, since the VPN routers perform the encryption and decryption. IPSEC is well suited for this environment, more so than tunneling PPP over SSL or SSH, since it operates directly on the IP packets and preserves a one-to-one correspondence between packets inside and outside the network. In the case of tunneling PPP over an encrypted TCP connection, any packet loss in the public network would trigger a TCP retransmission, stalling the link until the packet was delivered. In particular, running Voice Over IP (VoIP) traffic through a TCP/PPP tunnel would largely defeat the RTP protocol used for VoIP; IPSEC is better suited in this case.
